New product THz source for academic customers

Thelioz 1.0

Thelioz 1.0 is a continuously tunable, room-temperature CW terahertz source covering 2–15 THz. One table-top instrument replaces what used to take a gas laser, a QCL and a photomixer together, including the 7–15 THz window previously reserved for synchrotrons. Built for research groups in broadband spectroscopy and device characterization: no cryostat, no laser gas.

Top view of the Lynkeas THz source setup with lasers, optics and the metasurface module

Specifications*

Frequency range2–15 THz (67–500 cm−1)
Tuning window≥5 THz
Mode of operationCW or pulsed (100 Hz - 1 MHz)
Output powerUp to 50 µW (at selected frequencies)
Operating temperatureRoom temperature
Linewidth≤100 MHz (≈ 3×10−3 cm−1)
Frequency step size≤30 GHz (≈ 1 cm−1)
Beam / polarizationLinear

* The values above are typical configurations and can be adapted to your experiment. Many custom options are possible; the chosen configuration affects the capabilities, complexity and price of the setup.

Use cases

One research source.
Many experiments.

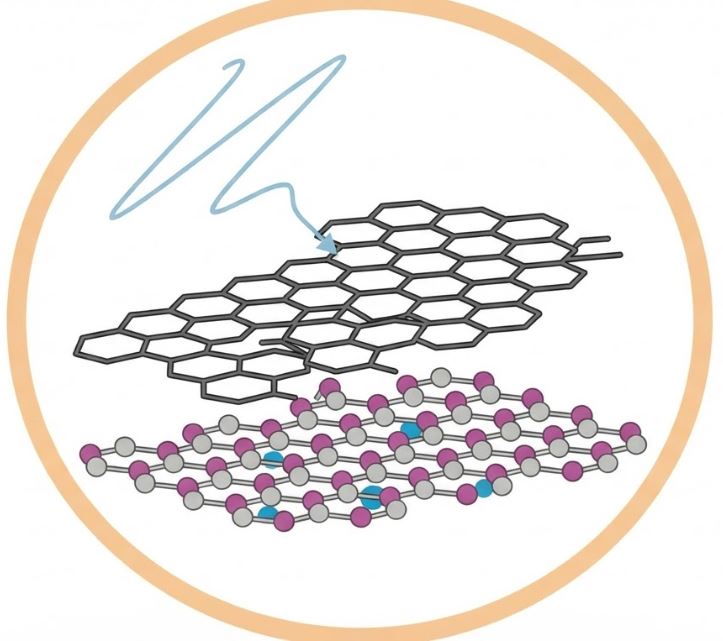

2D-material spectroscopy

Photocurrent and absorption spectroscopy of 2D materials and heterostructures. Tune continuously across low-energy resonances from 2 to 15 THz.

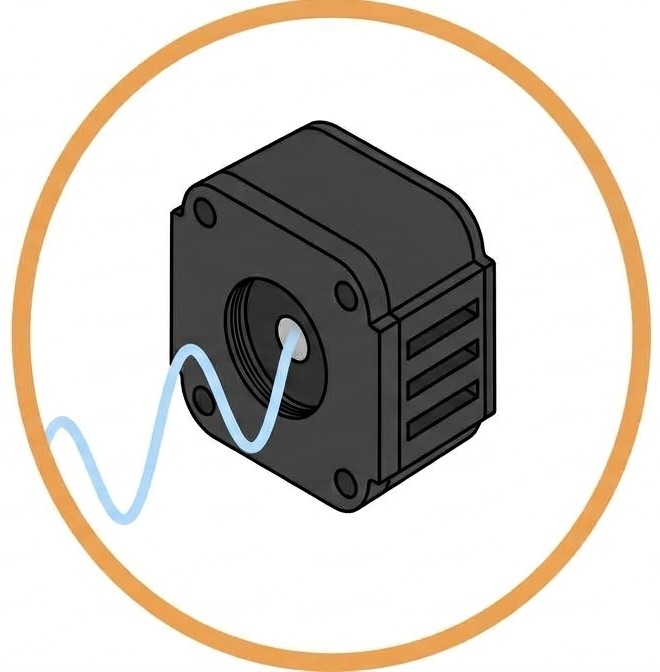

THz detector characterization

Map the responsivity and spectral response of THz detectors across the whole band with a single source, instead of stitching several together.

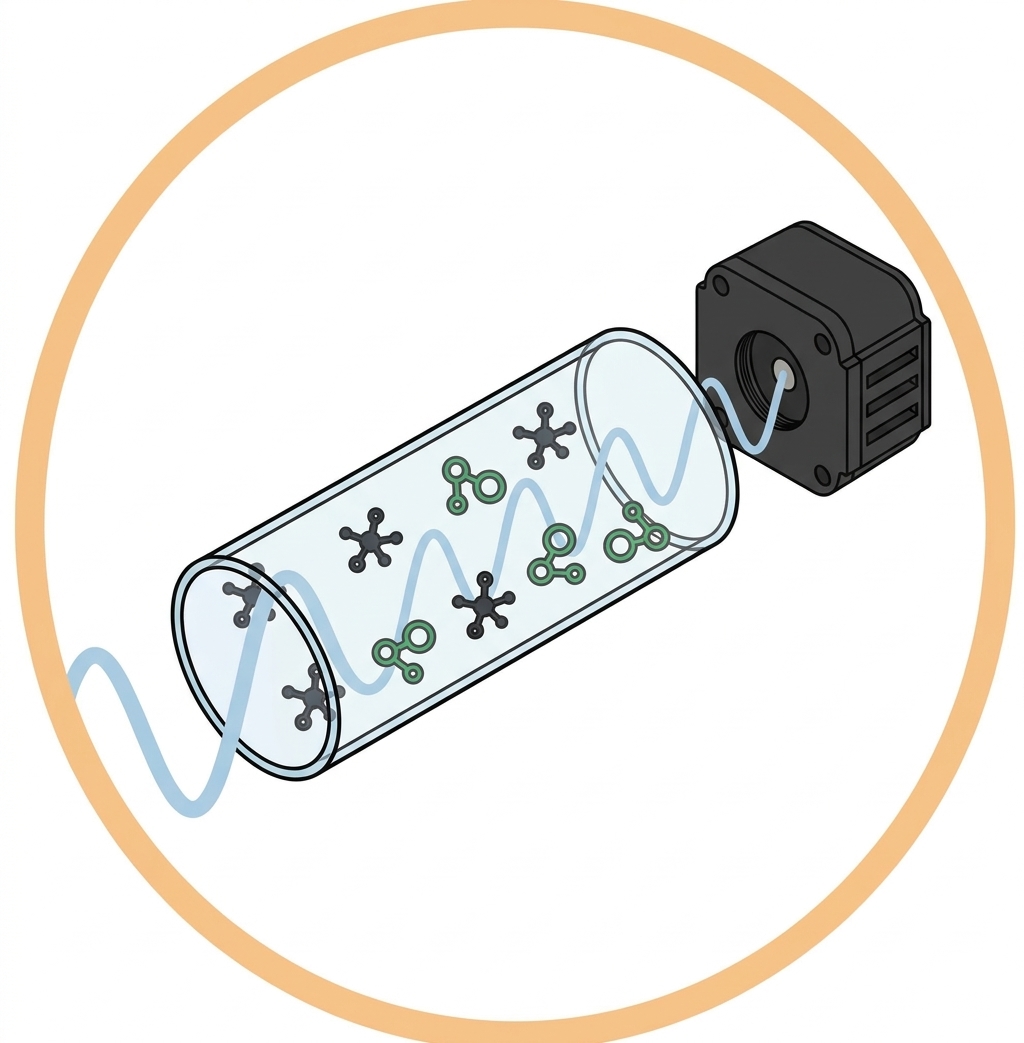

High-resolution gas spectroscopy

Resolve individual absorption lines of gases with a narrow-linewidth CW source, including the 7–15 THz window that other table-top sources do not reach.
